EQ Series Right Angle Planetary Gear Reducer with Modular Design and High Anti-Shock Performance for Industrial Applications

  • 1
  • 2
  • 3

Brand Name : EVERGEAR

Model Number : EQ

Certification : ISO9001,ISO14001,ISO24001,CE

Place of Origin : CHINA

MOQ : 1

Price : $199

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 99999

Delivery Time : 40-60Days

Packaging Details : Export strong wooden case and pallet

Power range : 0.19KW-12934KW

Ratio : 25 – 4000

Output torque : 22-2600KNm

Input  speed : 500rpm,750rpm,1000rpm,1500rpm,1800rpm

Input shaft diameter : 30mm-190mm

Output shaft diameter : 120mm-640mm

Reduction stage : two transmission stages, three transmission stages, four transmission stages

Mounting way : shaft mounted, Gear housing base, Motor Braket, Motor swing base, Torque arm supporting,Involute Spline shaft

Output way : Solid shaft ,hollow shaft, hollow shaft for shrink disk ,Involute Spline shaft

Ambient temperature : -40.00 [°C] ~ +50 [°C]

Direction of rotation of gear output shaft : CW rotation or CCW

Corrosion protection : Conservation acc. to Norm C1,C2,C3,C4,C5

Coating system : Standard coating, finishing coat, for all climatic zones

Lubrication : Dip lubrication, Splash lubrication, Pump lubrication

Shaft Key : Parallel shaft key and Keyway ,shrink disk,Involute spline

Color : blue RAL5010 /Grey RAL7031 or any color you need

Contact Now

EQ series planetary gear reducer

Model Size: 9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36

Advantages:
  • Modular design system Multi-purpose use of the housing and internal components.
  • Progressive ratio of sizes for optimum selection of sizes.
  • Improved noise level through grounded bevel gear teeth and noise-absorbing housings
Gearbox Overview:
  1. EQ series is a kind of gear speed reducer with one or two free wheels.
  2. Combination types can be freely changed with Modulized Design.
  3. Small volume, light weight, large range of transmission ratio, high efficiency and stable operation.
  4. The tank body is made of ductile iron of high rigidity and high anti-shock performance.

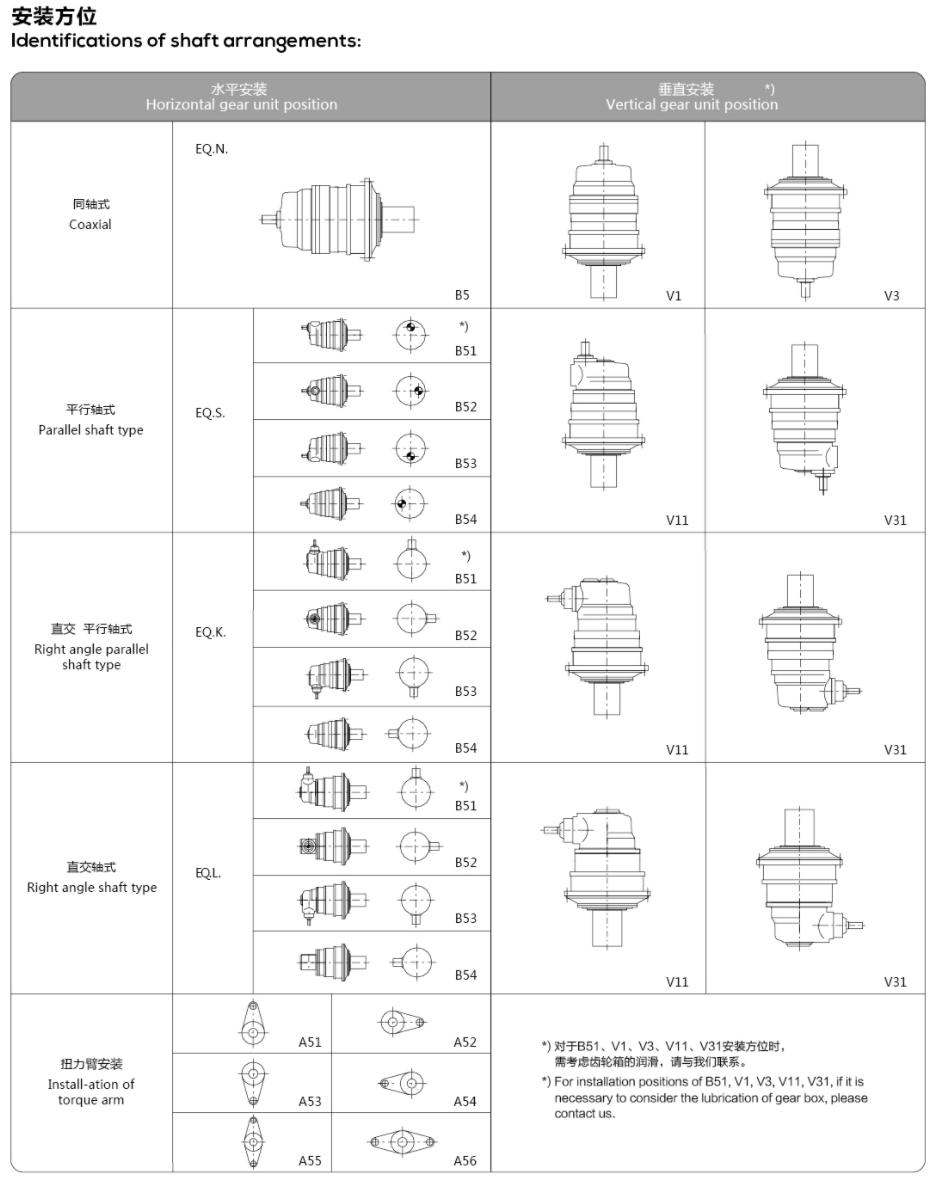

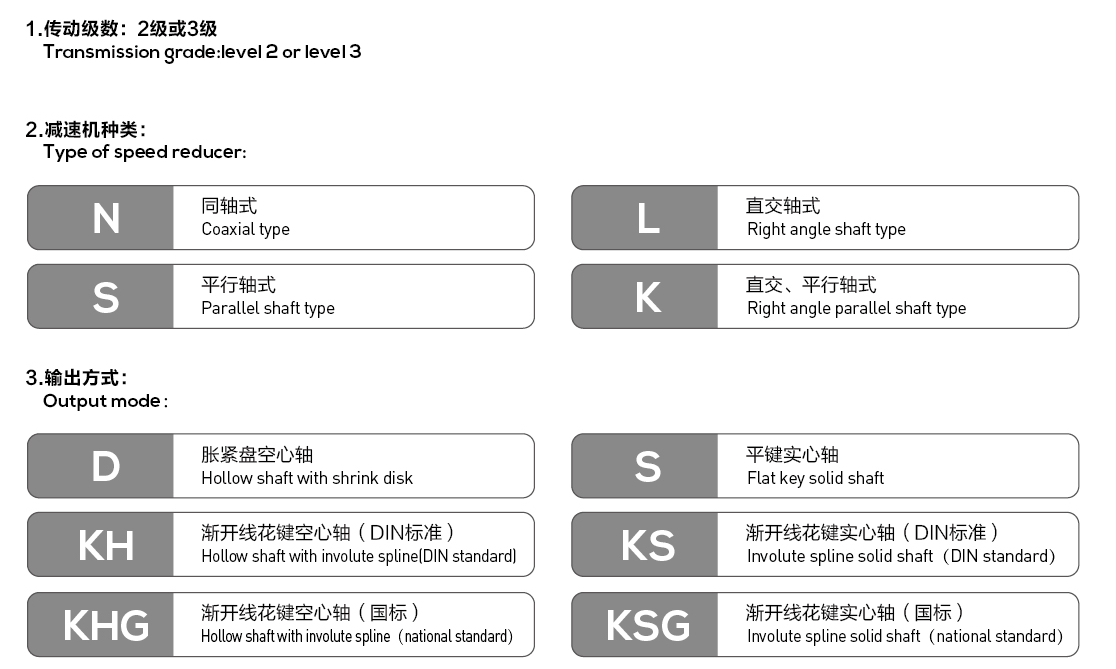

  5. Input mode: coaxial type, parallel shaft type, right angle shaft type, right angle parallel shaft type.
  6. Output mode: expansion plate hollow shaft, involute spline hollow shaft(DIN standard), involute spline hollow shaft(national standard), flat key solid shaft, involute spline solid shaft(DIN standard),involute Spline solid shaft(national standard).
Working enviroment:
  1. Working temperature:-40°C-50°C (The lubrication should be heated until above 0C if the machine works blow 0°C.)
  2. The working place should be lower than 1,000 meters above sea level
  3. Relative humidity: less than 85%.
  4. The input rotational speed should not exceed 1800/min.
  5. Suitable for normal-reverse rotation.
  6. Without industry limitation.
  7. Please consult us for other circumstances.

EQ Series Right Angle Planetary Gear Reducer with Modular Design and High Anti-Shock Performance for Industrial Applications


EQ Series Right Angle Planetary Gear Reducer with Modular Design and High Anti-Shock Performance for Industrial Applications

EQ Series Right Angle Planetary Gear Reducer with Modular Design and High Anti-Shock Performance for Industrial Applications

EQ Series Right Angle Planetary Gear Reducer with Modular Design and High Anti-Shock Performance for Industrial Applications


If you need more technical data, welcome to contact us online!
